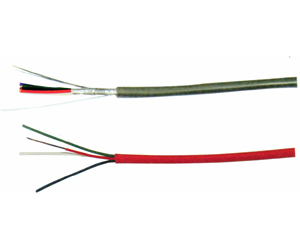

AT17 Security Cable

AT17 Security Cable

AT17 Security Cable

APPLICATIONS
These cables are designed for installation in signaling and alarm systems. They allow the connection of contacts, detectors and seasons, infra-red as well as microwave or mixed technology systems, to the switchboard
PRODUCT DESCRIPTION
Single shielded: AL/polyester foil, coverage>100% Double fully shielded: AL/polyester foil& tinned copper braid

AT17A STRUCTURE OF UNSHIELDED 0.22MM2 SOFT ALARM CABLE

Part NO.

SECTION

SPECIFICATION

OVERALL DIAMETER(mm)

WEIGHT (Kg/km)

AT17A1

2*0.22mm

2*7/0.20

3

11

AT17A2

4*0.22mm

4*7/0.20

3.5

18

AT17A3

6*0.22mm

6*7/0.20

4.1

25

AT17A4

8*0.22mm

8*7/0.20

4.5

32

AT17A5

10*0.22mm

10*7/0.20

5.2

39

AT17A6

12*0.22mm

12*7/0.20

5.4

46

AT17A7

14*0.22mm

14*7/0.20

5.8

54

AT17A8

20*0.22mm

20*7/0.20

6.8

76

AT17A9

30*0.22mm

30*7/0.20

8.4

114

AT17A10

40*0.22mm

40*7/0.20

10

148

AT17A11

2*0.5mm+2*0.22mm

2*16/0.20+2*7/0.20

3.9

27

AT17A12

2*0.5mm+4*0.22mm

2*16/0.20+4*7/0.20

4.5

34

AT17A13

2*0.5mm+6*0.22mm

2*16/0.20+6*7/0.20

4.9

41

AT17A14

2*0.5mm+8*0.22mm

2*16/0.20+8*7/0.20

5.7

49

AT17A15

2*0.5mm+10*0.22mm

2*16/0.20+10*7/0.20

6

57

AT17A16

2*0.5mm+12*0.22mm

2*16/0.20+12*7/0.20

6.3

63

AT17A17

2*0.75mm+2*0.22mm

2*24/0.20+2*7/0.20

4.2

36

AT17A18

2*0.75mm+4*0.22mm

2*24/0.20+4*7/0.20

4.9

43

AT17A19

2*0.75mm+6*0.22mm

2*24/0.20+6*7/0.20

5.3

50

AT17A20

2*0.75mm+8*0.22mm

2*24/0.20+8*7/0.20

6.2

59

AT17B STRCTURE OF SINGLE SHIELDED 0.22mm2 SOFT ALARM CABLE

Part NO.

SECTION

SPECIFICATION

OVERALL DIAMETER(mm)

WEIGHT (Kg/km)

AT17B1

2*0.22mm

2*7/0.20

3.1

11.3

AT17B2

4*0.22mm

4*7/0.20

3.6

18.5

AT17B3

6*0.22mm

6*7/0.20

4.1

25

AT17B4

8*0.22mm

6*7/0.20

4.2

25.8

AT17B5

8*0.22mm

8*7/0.20

4.6

33

AT17B6

10*0.22mm

10*7/0.20

5.3

40.2

AT17B7

12*0.22mm

12*7/0.20

5.5

4734

AT17B8

14*0.22mm

14*7/0.20

5.9

55.6

AT17B9

20*0.22mm

20*7/0.20

6.9

78.3

AT17B10

30*0.22mm

30*7/0.20

8.5

117.4

AT17B11

40*0.22mm

40*7/0.20

10.1

152.4

AT17B12

2*0.5mm+2*0.22mm

2*16/0.2+2*7/0.20

4

27.8

AT17B13

2*0.5mm+4*0.22mm

2*16/0.2+4*7/0.20

4.6

35

AT17B14

2*0.5mm+6*0.22mm

2*16/0.2+6*7/0.20

5

42.2

AT17B15

2*0.5mm+8*0.22mm

2*16/0.2+8*7/0.20

5.8

50.5

AT17B16

2*0.5mm+10*0.22mm

2*16/0.2+10*7/0.20

6.1

58.7

AT17B17

2*0.5mm+12*0.22mm

2*16/0.2+12*7/0.20

6.4

64.9

AT17B18

2*0.75mm+2*0.22mm

2*24/0.2+2*7/0.20

4.3

37.1

AT17B19

2*0.75mm+4*0.22mm

2*24/0.2+4*7/0.20

5

44.3

AT17B20

2*0.75mm+6*0.22mm

2*24/0.2+6*7/0.20

5.4

51.5

AT17B21

2*0.75mm+8*0.22mm

2*24/0.2+8*7/0.20

6.3

60.8

AT17C STRUCTURE OF DOUBLE FULLY SHIELDED 0.22MM2 SOFT ALARM CABLE

Part NO.

SECTION

SPECIFICATION

OVERALL DIAMETER(mm)

WEIGHT (Kg/km)

AT17C2

2*0.22mm

2*7/0.20

3.6

19.4

AT17C4

4*0.22mm

4*7/0.20

4.1

26.6

AT17C6

6*0.22mm

6*7/0.20

4.7

33.9

AT17C8

8*0.22mm

8*7/0.20

5.1

41.1

AT17C10

10*0.22mm

10*7/0.20

5.8

48.3

AT17C12

12*0.22mm

12*7/0.20

6

55.5

AT17C14

14*0.22mm

14*7/0.20

6.4

63.7

AT17C20

20*0.22mm

20*7/0.20

7.4

96.4

AT17C30

30*0.22mm

30*7/0.20

9

125.5

AT17C40

40*0.22mm

40*7/0.20

10.6

160.5

AT17C25-2

2*0.5mm+2*0.22mm

2*16/0.20+2*7/0.20

4.5

35.9

AT17C25-4

2*0.5mm+4*0.22mm

2*16/0.20+4*7/0.20

5.1

43.1

AT17C25-6

2*0.5mm+6*0.22mm

2*16/0.20+6*7/0.20

5.5

50.3

AT17C25-8

2*0.5mm+8*0.22mm

2*16/0.20+8*7/0.20

6.3

58.6

AT17C25-10

2*0.5mm+10*0.22mm

2*16/0.20+10*7/0.20

6.6

66.8

AT17C25-12

2*0.5mm+12*0.22mm

2*16/0.20+12*7/0.20

6.9

73

AT17C27-2

2*0.75mm+2*0.22mm

2*24/0.20+2*7/0.20

4.8

45.2

AT17C27-4

2*0.75mm+4*0.22mm

2*24/0.20+4*7/0.20

5.5

52.4

AT17C27-6

2*0.75mm+6*0.22mm

2*24/0.20+6*7/0.20

5.9

59.6

AT17C27-8

2*0.75mm+8*0.22mm

2*24/0.20+8*7/0.20

6.8

68.9

AT17C27-10

2*0.75mm+10*0.22mm

2*24/0.20+10*7/0.20

7

75.1

AT17C27-20

2*0.75mm+12*0.22mm

2*24/0.20+12*7/0.20

7.4

82.3

AT17D STRUCTURE OF FLEXIBLE SECTION 0.2MM2 OF UNSHIELDED ALARM CABLE

Part NO.

SECTION

SPECIFICATION

OVERALL DIAMETER(mm)

WEIGHT (Kg/km)

AT17D2

2*0.22mm

2*1/0.50

3

11

AT17D4

4*0.22mm

4*1/0.50

3.5

17.7

AT17D6

6*0.22mm

6*1/0.50

4.2

25.4

AT17D8

8*0.22mm

8*1/0.50

4.5

31.5

AT17D10

10*0.22mm

10*1/0.50

5.3

39.7

AT17D12

12*0.22mm

12*1/0.50

5.5

46

AT17D16

16*0.22mm

16*1/0.50

6

57.3

AT17D24

24*0.22mm

24*1/0.50

7.3

82.1

AT17E STRUCTURE OF FLEXIBLE SECTION 0.2mm2 OF SINGLE SHIELDED ALARM CABLE

You may also like

AT17 Security Cable

Please Post Comments

Part NO.

SECTION

SPECIFICATION

OVERALL DIAMETER(mm)

WEIGHT (Kg/km)

AT17E2

2*0.22mm

2*1/0.50

3.1

11.3

AT17E4

4*0.22mm

4*1/0.50
